Ship Radar ARPA Simulator

Hefonix-Rader 6000Radar/ARPA simulator meticulously recreates the user interface and logic of mainstream merchant ship radars, meeting the radar simulator requirements of the STCW Convention, the "Standards for the Assessment of Competency for Seafarers of the People's Republic of China," and the "Regulations for the Examination and Certification of Competency for Seafarers of the People's Republic of China."

It provides the following functions:

- Covered radar echo images include:

* Coastline;

* Fixed aids to navigation, navigation buoys, radar transponders, SARTs, etc.;

* Target ship echoes, with echo shape dependent on target ship size, distance, and relative bearing;

* Rain, snow, and sea clutter should conform to actual conditions;

* False echoes: indirect echoes, multiple reflections, sidelobe false echoes, and secondary scans;

* Radar co-channel interference: synchronous and asynchronous co-channel interference;

* Inter-target obstruction;

* Receiver noise;

* Shadow sectors, blind spots, and the effect of the bow on the radar image at short range;

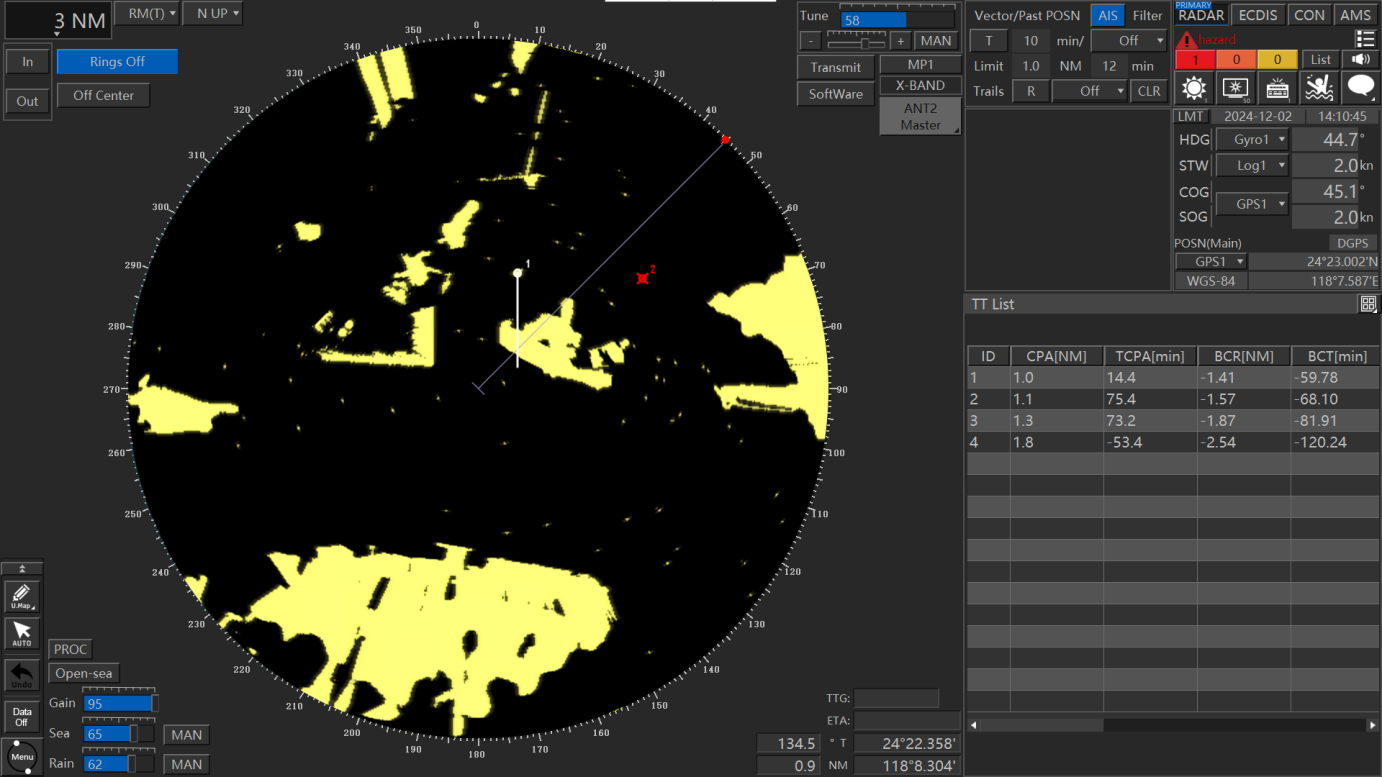

- Radar/ARPA functions, including:

* Image display effective diameter of at least 16 inches;

* Display modes: head-up, north-up, course-up, true motion mode, and relative motion mode;

* X-band/S-band switching;

* Long pulse, short pulse;

* Super refraction, sub-refraction;

* Fixed range circle, movable range circle;

* Offset display;

* Electronic bearing lines: Two, one with a movable starting point;

* Trial maneuvering: Simulates own ship's maneuvering and displays the future position of own ship and all tracked targets;

* Automatic and manual registration: Tracks at least 20 targets within a range of 0.3 to 32 nautical miles;

* Velocity vectors: Switches between true motion vector and relative motion vector, with adjustable vector duration;

* Target vessel data display: Target vessel number, range, bearing, CPA, TCPA, true heading, true speed (relative heading and relative speed can be displayed);

* CPA and TCPA can be set as needed, with PPC and PAD displays available;

* Alarms: Collision risk, target loss, target intrusion, target track change, dragging anchor, operational error, etc.; alarms include sound, light, symbol and text;

* Historical track display: Displays five historical points for each tracked target, with each point interval ranging from 1 to 12 minutes;

* Warning circle setting: The operator sets a warning circle. When a target enters the warning circle, the intruding target is automatically registered. - Supports "paperless" radar plotting;

- Supports radar data generation for global waters;

Based on the implementation of these radar functions, this product can be used for:

- Crew competency training;

- Ship command and tactical simulations;

- Scientific research and equipment verification;

- Maritime emergency drills.

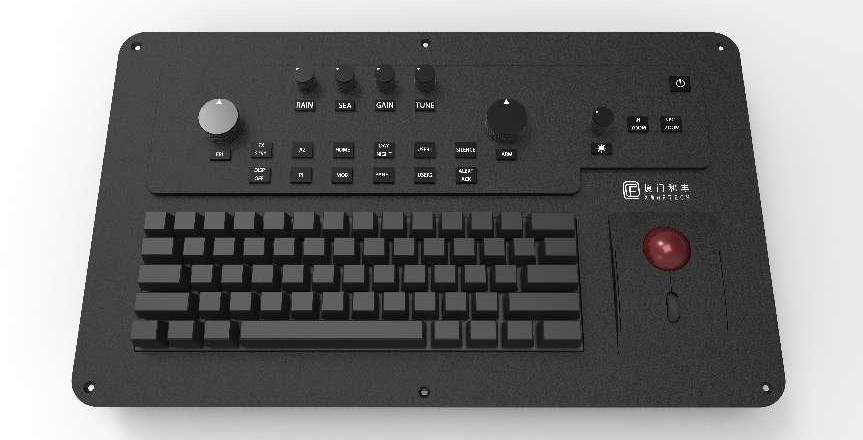

To enhance the realism of training, especially the operational feel, this product comes with a control panel that integrates the radar control module (including 29 components such as buttons, knobs, and indicators), a trackball mouse, and a 68-key keyboard. Operational feedback is consistent with actual shipboard equipment, shortening the transition period from simulator to onboard operations.

In addition, based on the product characteristics of radar/ARPA simulators and to meet your unique needs, we provide one-stop supporting services, including:

- Pre-sales support: Providing hardware configuration recommendations, site planning (floor plan), and renovation suggestions to ensure full utilization of the site and meet daily teaching needs;

- Customization: Configuring each module based on the desired scenario. Optional features include a 3D visual module and ECDIS module.

- In-sales Service: Services include installation and commissioning, site adaptation, operator training, and documentation delivery. We ensure the delivery of high-quality products, giving you peace of mind.

- After-sales Service: 1-year free warranty (including hardware replacement and software upgrades), 24/7 technical support, and lifetime system optimization advice. We're here to help you at any time.
